BR SOLAR Ditandai Utama & Produk Kompetitif Terbaik:
1. Lampu Jalan Setapak & Lampu Jalan LED 15W-120W;
2. Lampu Taman Tenaga Surya & Lampu Lanskap Matahari 5W-30W;
3. Solar Battery: 4.5Ah-250Ah / 12V, 200Ah-3000Ah / 2V;
4. Panel Surya & Modul Surya 5W-300W Poly & Mono;
5. Solar Controllers: 5A-60A / 12V Atau 24V Atau 48V IP 65 IP68 Rating;
6. Sistem Penerangan Rumah Surya / Kit: 5W-5000W Dengan Pencahayaan + Kipas + TV + Kulkas + Fungsi Telepon Pengisian USB / AC atau Daya DC;
Puaskan layanan kami yang berpengalaman, kualitas harga, dari pertanyaan Anda hari ini
Sistem Data Teknis: Harga panel surya 8M 60w Berdasarkan pada 5.0 kWh / m2 / hari
8M Pole Height 60W LED Street Light
|
11-12Hrs 3-4 Nights Lighting
|
Solar Panel:
Lifespan:20-25 years
|
200W*1PC for 24V Lighting, 17% Efficiency,
Mono Crystalline Silicon. High Efficiency.
Adding Aluminum Frame, Tempered Glass.
|
Gelled Battery
Lifespan:5-8 years,
|
120Ah/12V*2PCs, Sealed Type, Gelled.
Deep cycle. Maintenance Free
|
Intelligent Solar Controller,
PWM Type,
Lifespan:5-10 years
|
15A/24V*1PC, Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after 11-12 Hrs later.
|
Light source: High Power LED
Lifespan: >80000Hrs,
|
60W*1PC LED, White Color,130LM/W,30Lux,6500K,
IP65,120 Degree Angle,
High Power, High Brightness.
|
Lamp Housing:
Lifespan: More than 20 years
|
Die-casted Aluminum, IP66
High transmittance &
density toughened glass,
|
Pole:
Lifespan: More than 20 years
|
8M Height,Steel, Hot-Dip Galvanized.
With Arm, Bracket, Flange, Fittings, Cable, Etc
Plastic Coated, Rust Proof,
Resistant to Wind: ≥150KM/H,
|
Periksa di bawah ini untuk informasi lebih lanjut tentang menempatkan pesanan
1. Inquiry-Professional quotation.
|
2. Confirm the price, lead time, artwork, payment term etc.
|
3. Br sales send the Proforma Invoice with BR seal.
|
4. Customer make the payment for deposit and send us Bank receipt.
|
5.Initial Production Stage-Inform the clients that we have got the payment, And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.
|
6. Middle Production-send photos to show the production line which you can see your products in. Confirm the estimated delivery time again.
|
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection.
|
8. Clients make payment for balance and Freedom Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.
|
9. Order can be say [finish" when you receive the goods and satisfy with them.
|
10. Feedback to BR about Quality, Service, Market Feedback & Suggestion. And we can do better.
|
Setiap Bagian untuk harga panel surya
--- Lampu LED Pengujian:

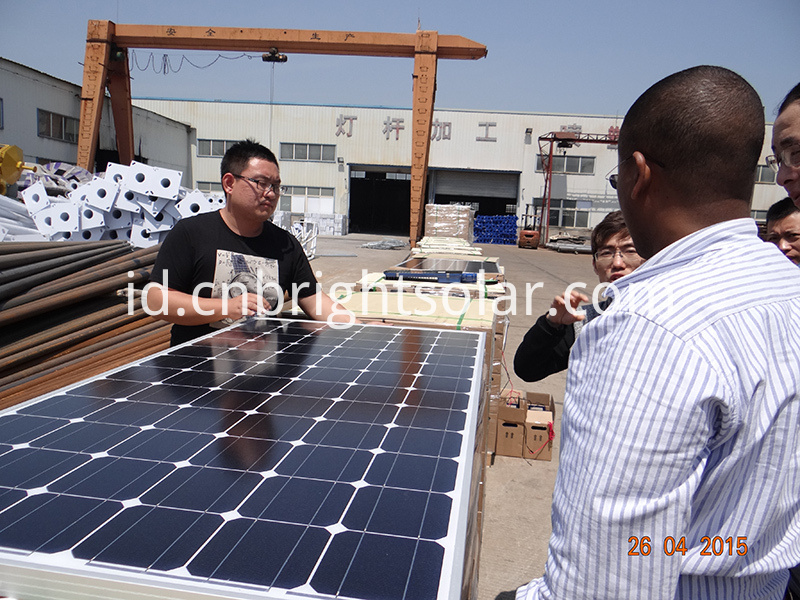

---Panel surya

--- Baterai Surya
--- Tiang Baja Galvanis:
--- Kontroler Cerdas Surya:

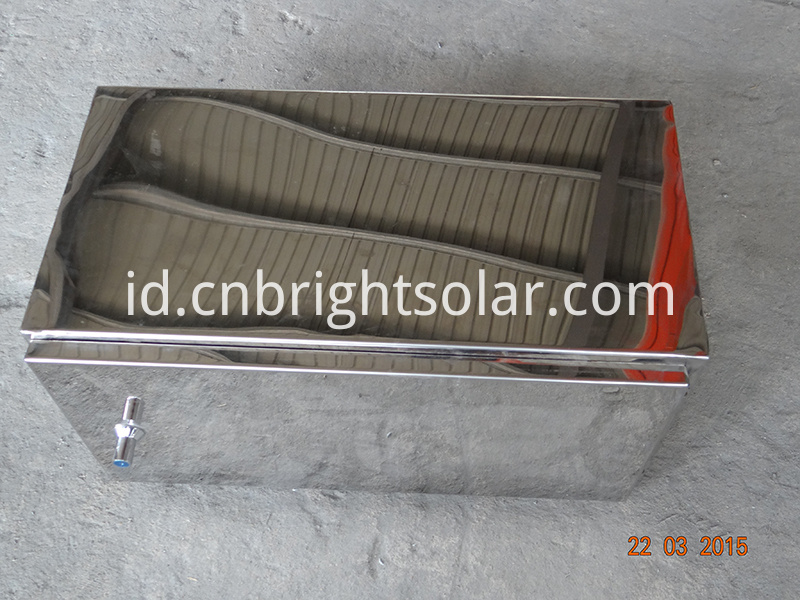

--- Stainless Steel Cermin Kotak Baterai Dengan Kunci:

--- Kotak Baterai Plastik Bawah Tanah:

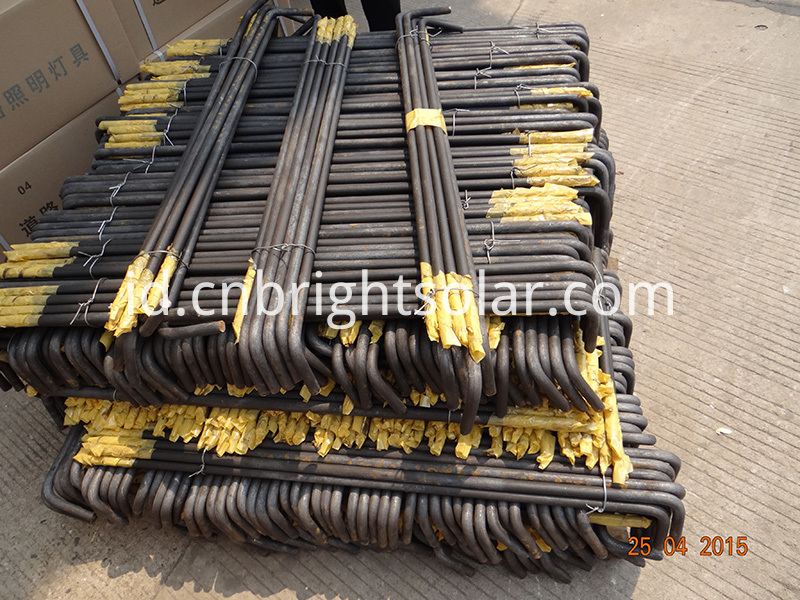

--- Pangkalan Yayasan ::

IP65 dipimpin lampu jalan ---- Pengujian Gambar Puting Baterai dan pengontrol ke dalam air :
Syarat & Ketentuan:
1. Istilah harga: FOB SHANGHAI untuk pesanan massal.
Harga sudah termasuk lampu jalan led, panel surya, controller, baterai, kotak baterai, kabel dan tiang set (tiang, rak, lengan, pelat dasar).
2. MOQ: 1 set. Kurang dari 1 set, memiliki Sampel dalam stok untuk pengujian.
3. Pembayaran: Biasanya 30% oleh T / T sebagai uang muka, keseimbangan oleh T / T sebelum pengiriman atau oleh L / C pada pandangan.
4. Paket: Ekspor kasus kayu lapis standar atau kemasan karton cocok untuk penanganan tangguh dan transportasi laut jarak jauh.
5. Pengiriman: untuk 100 set, total barang dapat siap untuk pengiriman dalam waktu 15 hari setelah menerima pembayaran uang muka.
6. Bagian Desain Layanan Waktu: Solar Panel 25 tahun, lampu LED lebih dari 80.000 jam, Controller 10 tahun, Baterai 5 ~ 6 tahun, Pole 20 tahun.
7. Garansi: 5 tahun untuk panel surya dan tiang, 3 tahun untuk lampu jalan yang dipimpin, 3 tahun untuk baterai dan pengontrol.

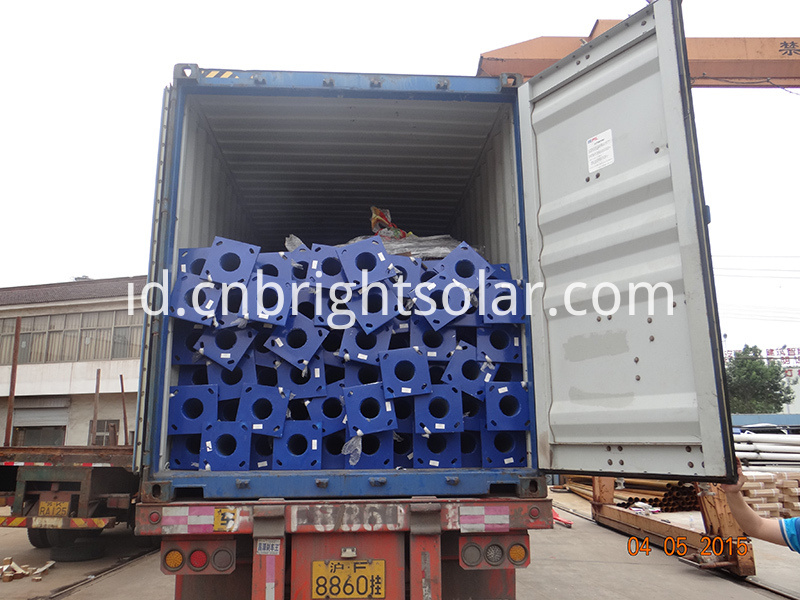

--- Gambar Packing:

Proyek kami di berbagai negara :
Diterapkan di Lebih dari 50 Negara 5 tahun Garansi Berdiri Seiring Harga Murah harga panel surya
